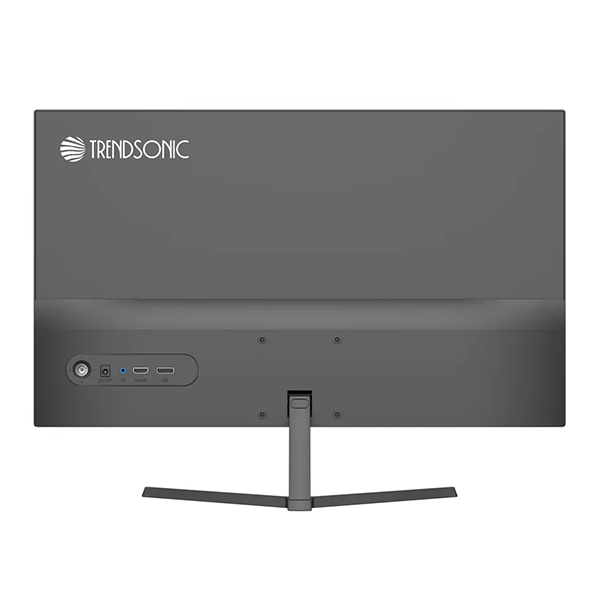

Name: Trendsonic 23.8 Inch Bezel‐less Full HD 144Hz IPS Display Monitor
Brand: Orient Power BD
SKU: 7
Availability: InStock

Trendsonic 23.8 Inch Bezel‐less Full HD 144Hz IPS Display Monitor

Trendsonic 23.8 Inch Bezel‐less Full HD 144Hz IPS Display Monitor

Contact for price

Need a quote?

Email our team for availability, installation support, and pricing.

Email us

Description

Display screen	OC		BOE MV238FHB-NY0
	Panel Type		IPS
	Curvature		Flat
	Size		23.8"
	Panel area		534.84(W)×306.06(H)mm
	Active area		527.04(W)×296.46(H) mm
	Aspect Ratio		16:9
	Resolution (HxV)		1920*1080
	Refresh rate（Max）		144HZ
	Response Time（GTG）		OD 5MS
	Viewing Angle		89/89/89/89 (Typ.)(CR≥10)
	Color Support		16.7M
	Contrast Ratio)(Typ.)		1000:1
	Backlight Technology		WLED
	Brightness(Max.)		280nit ±20
	Brightness Uniformity		≥75%
	Surface Treatment		(Haze 25%)，Hard coating (3H)
	Color Gamut	SRGB	99.00%
		NTSC	72.00%
Mechanical	Bezel		3-sided Bezeless
	Rear Cover		Plastic Rear cover
	Base		Fixed Metal Stand
	（Base）	Tilt	（+5°,- 15°）±2°
		Height	/
		Swivel	/
		Pivot Rotation	/
		Disassembly	/
	Vesa function	Vesa size	75*75mm
		Screws	M4
	Dimensions	(LWH）(With stand)	540.78136.40396.62mm
		（LWH）(Without stand)	540.7835.05322.58mm
	Package	(LWH)(Dimensions)	603100393mm
		Net weight (including base)	2.7KG
		Gross weight	3.65KG
AD Board	IC		CVT2525/ HDMI+DP+AUDIO OUT
Electronics	Port Location		Back
	(Interface)	VGA	/
		DVI	/
		HDMI	1HDMI 1.4 (19201080@144HZ)
		DP	1DP 1.2 (19201080@144HZ)
		Type-C	/
		USB	/
		Audio in	/
	USBHUB	USB-A	/
		USB-B	/
	(Audio)	Audio out	1
		Speaker	YES (4Ω，3W)
	HDCP		/
	Indicator		Power on : Blue(LED) Power saving : Flashing Blue (LED)
	Atmosphere Light		/
	Key board	Location	Back of the fuselage
		Function	Five-way remote sensing button
Software	Color temperature		Warm （6500K)/Cool(9300K)/standard(7500K)//User
	Preset Mode		6500K
	Language		English
	低蓝光(SoftwareLowBlueLight)		软件低蓝光
	Flicker-free(不闪屏）		Yes
	HDR		/
	Freesync/AdaptiveSync		Yes
	ECO模式		Yes
	G-sync		兼容
	E-Book		Yes
	MPRT		Yes
	OverDriver		Yes
	PBP/PIP		/
	AiVision		/
	暗部平衡(ShadowBoost)		Yes
	Six-axis color grading		/
	Refresh rate display		/
	Timer		/
	TYPE-C screen projection function		/
	Hawk eye mode		/
	Ai-Crosshair		/
	Custom shortcut keys		/
Certificate	3C	Energy efficiency level	/
		Certificate number	/
		69 code	/
	CE/FCC/KC/UKCA/EAC	energy star	/
		Other customer authentication requirements	/
Power	Type		Wall Plug Adapter European
	Input Voltage		12V
	Input Electric Current		2.5A
	Power Consumption	On	30W(28.6W)
		Stand by(max)）	0.5W
	USBC/Thunder bolt3)		/
Accessories	Cantron	Material	Carton Box(彩箱)
		Carry	Handle(提手设计)
	Instructions		Customize氪缤
	Color Report		/
	Energy Sticker		/
	Warranty Card/User Manual		1
	Screws		3
	Cables	Adapter	YES DC 12V-2.5A
		Power Cable	No
		HDMI Cable	1.5M
		DP Cable	No
		Type-C Cable	No
		USB Cable	No
Environmental Parameters	Storage Temperature		-20°C~60°C
	OperatingTemperature		0°C ~ +40°C
	Humidity Range Operating		20% ~ 90% RH
	Altitude		≤2000m
Load Data	(WithoutPallet)	20GP	1250
		40GP	2500
		40HQ	2800
	(WithPallet)	20GP	630
		40GP	1400
		40HQ	1520
